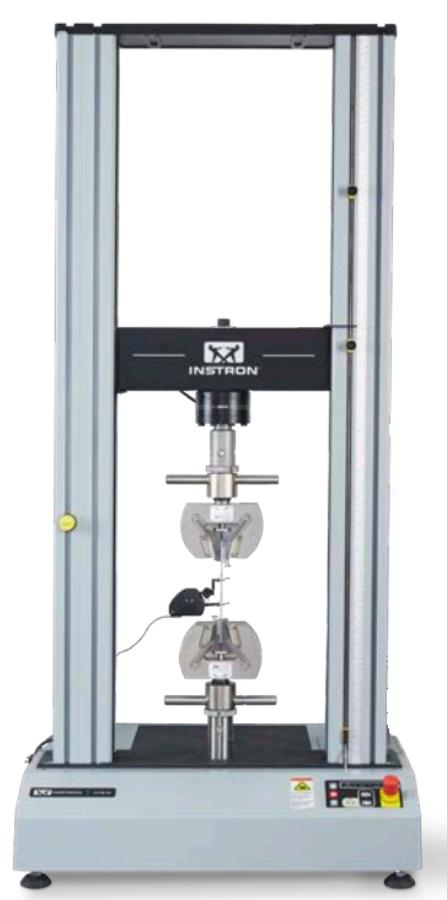

Universal Material Testing Machine

Instrument name

Universal Material Testing Machine

Model

34TM-50

Specifications

1. Force capacity 50 kN

2. Sensing frequency 1000 Hz

3. Tension/Compression Load Cell, Force Capacity: 50 kN/500 N/5 N, accuracy better than ±0.5%

4. Testing speed range: 0.05 to 508 mm/min

5. Three-point bending test fixture: maximum force capacity 5 kN

6. Manual wedge-shaped flat push type stretching fixture: maximum force capacity 50 kN

7. Compression platen: maximum force capacity 50 kN

Function and applications

The universal testing machine is very versatile and can be used for tensile stress, tensile strength, tear strength, tear elongation, constant tensile stress, constant stress elongation, constant stress force value, tear strength, arbitrary point force value, arbitrary point elongation, extraction force, adhesive force and taking peak calculated value, pressure test, bending test,  extraction force puncture force test, etc. In addition to this, special tests can also be carried out, such as the definition of the elastic coefficient, i.e. Young's modulus of elasticity, proportional limit, elastic limit, elastic deformation, permanent deformation, yield point, yield strength, spring K-value, etc.

Accessories

Air compressor
